Lingbao K68 Hall Effect Keyboard with Display Screen

LINGBAO K68 8K Tri-Mode Magnetic Gaming Keyboard with TFT Display

The LINGBAO K68 8K Tri-Mode Magnetic Gaming Keyboard is a compact 68-key gaming keyboard designed for players who demand precise input control, rapid response, and extensive customization. Powered by Lingbao's self-developed Nebula Magnetic Switches, it combines 0.01mm Rapid Trigger precision, an 8000Hz polling rate, and 128KHz key scanning in a compact design.

Beyond its competitive gaming features, the K68 includes a 0.96-inch TFT display, customizable ARGB lighting, a multifunction control knob, and a substantial 6000mAh battery. Furthermore, its tri-mode connectivity supports Type-C wired, Bluetooth, and 2.4GHz wireless connections, providing flexibility for different setups.

Lingbao Nebula Magnetic Switches

The K68 uses Lingbao's self-developed Nebula Magnetic Switches, which detect key position magnetically to support adjustable actuation and Rapid Trigger functionality.

The switches feature an initial operating force of 27±5gf, a bottom-out force of 42±5gf, and total key travel of 3.4±0.1mm. Their magnetic trigger specifications are listed as 85±15Gs initially and 530±60Gs at bottom-out with a 1.6mm PCB.

This magnetic design gives users greater control over key activation and reset behavior, making the keyboard suitable for fast-paced games that benefit from responsive input.

0.01mm Rapid Trigger Precision

The LINGBAO K68 supports 0.01mm Rapid Trigger precision, allowing very small changes in key position to control activation and reset.

Unlike conventional mechanical switches with fixed reset points, Rapid Trigger can dynamically respond to a key's movement. This makes it particularly useful for competitive FPS games, rhythm games, and other situations requiring repeated, rapid keystrokes.

The keyboard also supports adjustable actuation and advanced key functions through its compatible configuration software.

8000Hz Polling Rate and 128KHz Key Scanning

The K68 combines an 8000Hz polling rate with a 128KHz key scanning rate for fast input detection and reporting.

The high polling rate is designed to provide frequent updates between the keyboard and connected device, while the scanning system monitors key positions for responsive input.

The keyboard also lists a response time as low as 0.125ms. Actual performance can depend on the operating mode, system configuration, and testing conditions.

Advanced Dynamic Key Functions

The LINGBAO K68 supports several advanced gaming functions:

• RS: Rapid-trigger-related functionality.

• SOCD: Simultaneous opposing-direction input handling.

• DKS: Dynamic keystroke functionality.

• MT: Mod-Tap functionality.

• TGL: Toggle functionality.

These features provide additional options for customizing key behavior, depending on software configuration and game compatibility.

0.96-Inch TFT Display and Multifunction Knob

A built-in 0.96-inch TFT display gives the K68 a distinctive visual element within its compact layout. It supports custom wallpaper functionality, allowing users to personalize the keyboard's appearance.

The keyboard also includes a multifunction control knob with damping for convenient control. According to the supplied specifications, pressing the knob together with the FN key can switch Rapid Trigger mode.

Together, the display and knob add both customization and practical control options to the keyboard.

Tri-Mode Connectivity

The LINGBAO K68 supports three connection methods:

• Type-C Wired

• Bluetooth

• 2.4GHz Wireless

This flexibility allows users to choose a wired setup or connect wirelessly according to their preferences.

The keyboard lists an 8000Hz polling rate, but the maximum rate available may depend on the connection mode and configuration. Confirm mode-specific polling performance before purchasing if 8000Hz wireless operation is essential to your setup.

Customizable Magnetic Switch Configuration

The K68 platform supports mixed magnetic switches, allowing compatible switches to be configured across the keyboard.

This provides additional flexibility for users who want to customize their typing or gaming experience. However, replacement switches should be checked for compatibility with the K68's magnetic sensing system before installation.

Gasket Structure and Six-Layer Sound Dampening

The LINGBAO K68 features a gasket-mounted structure and a six-layer internal dampening system designed to refine its typing feel and acoustic character.

The internal layers include:

• PORON sandwich foam

• IXPE switch pad

• PET sound pad

• PORON socket foam

• PET bottom film

• Silicone bottom pad

Furthermore, the keyboard uses an aluminium alloy positioning plate and an aluminium alloy bottom plate with an anodised anti-oxidation finish. These components contribute to its overall structural design.

South-Facing ARGB Lighting

The K68 features south-facing ARGB lighting with approximately 16.8 million colours and music-synchronized effects.

Three dedicated LEDs are positioned beneath the spacebar to enhance its lighting presentation. The transparent PC keycaps also contribute to the keyboard's distinctive visual appearance.

Keycap designs vary by colour option: the black and white versions feature side-engraved legends, while the Green Mist version uses top-engraved legends.

6000mAh Battery with NTC Protection

The LINGBAO K68 is equipped with a 6000mAh battery, configured as two 3000mAh cells.

The battery system includes NTC temperature protection, which monitors temperature as part of battery safety management.

According to the supplied specifications, the keyboard offers approximately:

• 30 hours with default lighting enabled.

• 60 hours with the backlight turned off.

Actual battery life varies depending on lighting settings, connectivity mode, and usage.

Web Driver, Onboard Memory and Calibration

The K68 supports onboard memory for storing supported configurations. It also uses the A HUB web driver, which opens through the FN + M shortcut without requiring a conventional software installation.

Supported customization includes advanced key functions and magnetic-switch configuration. Driver calibration is specified for wired mode only.

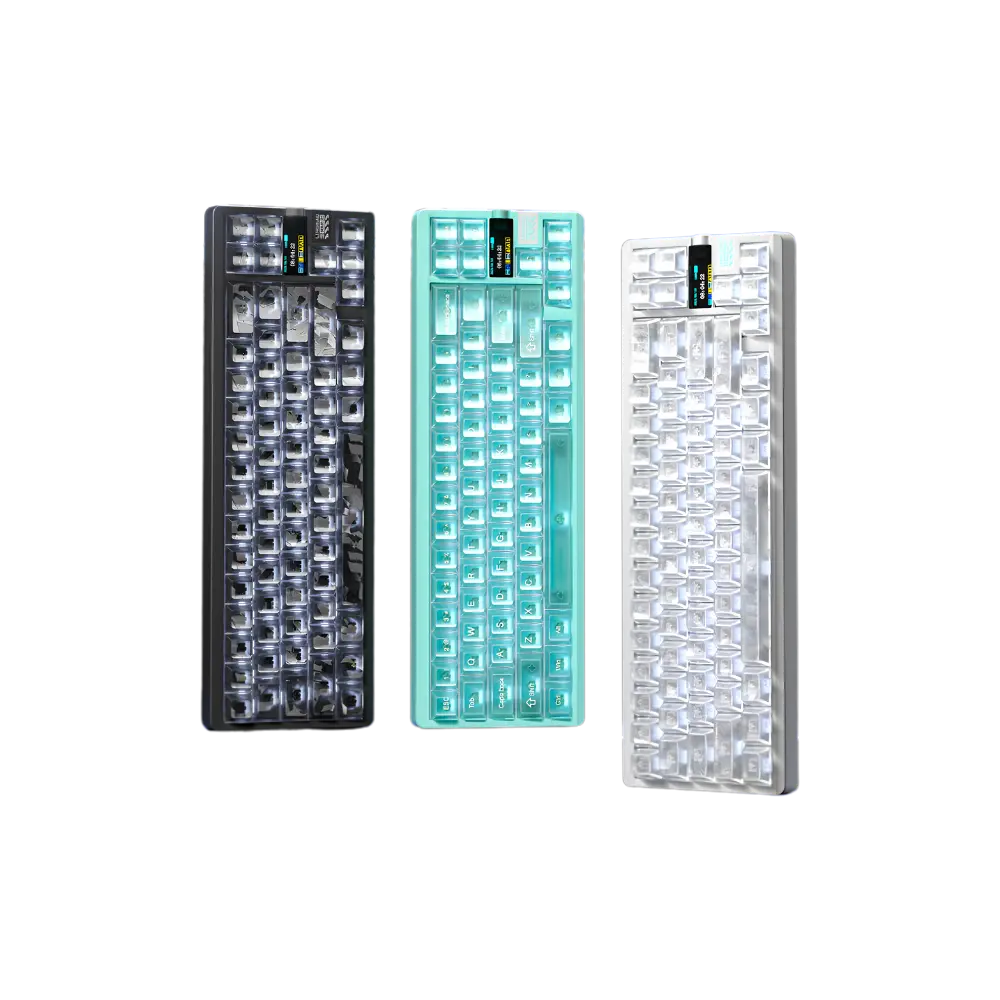

Available Colours

The LINGBAO K68 is listed in three colour options:

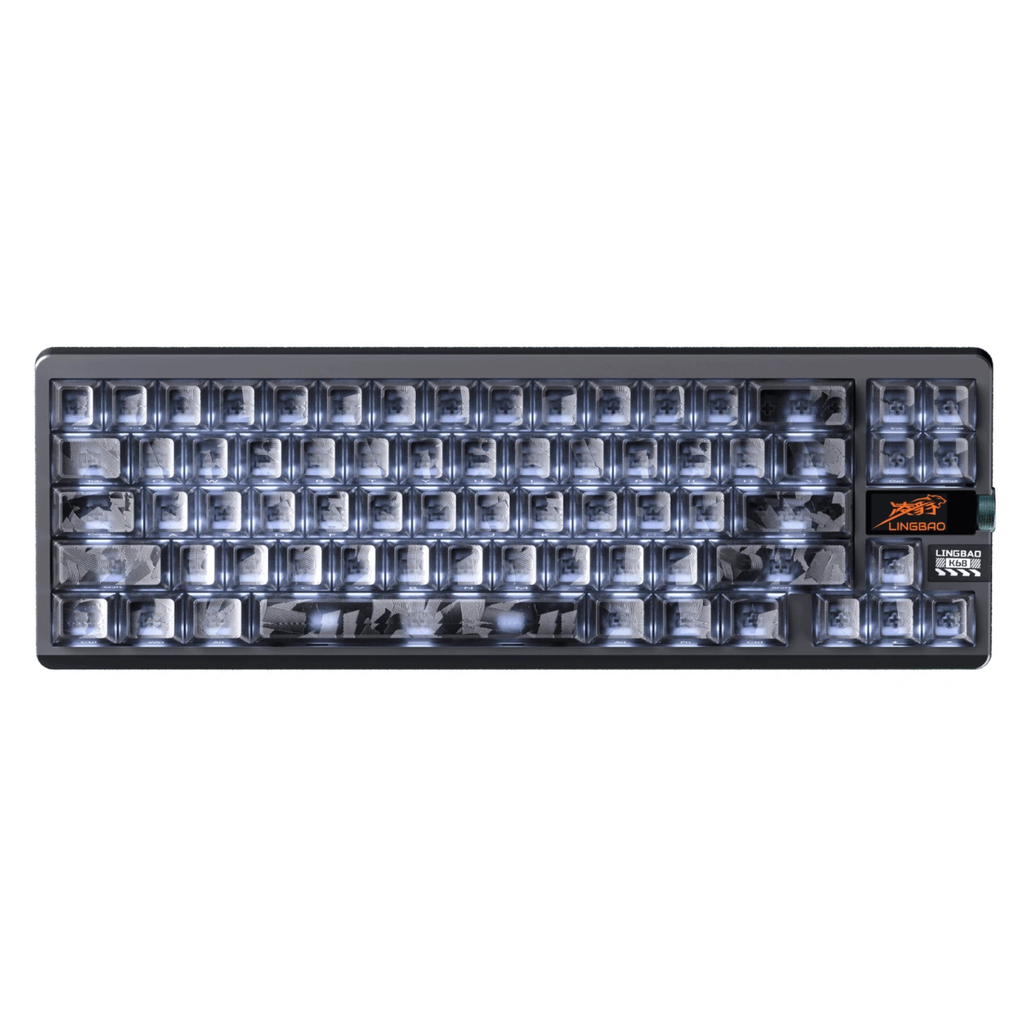

• Black Transparent

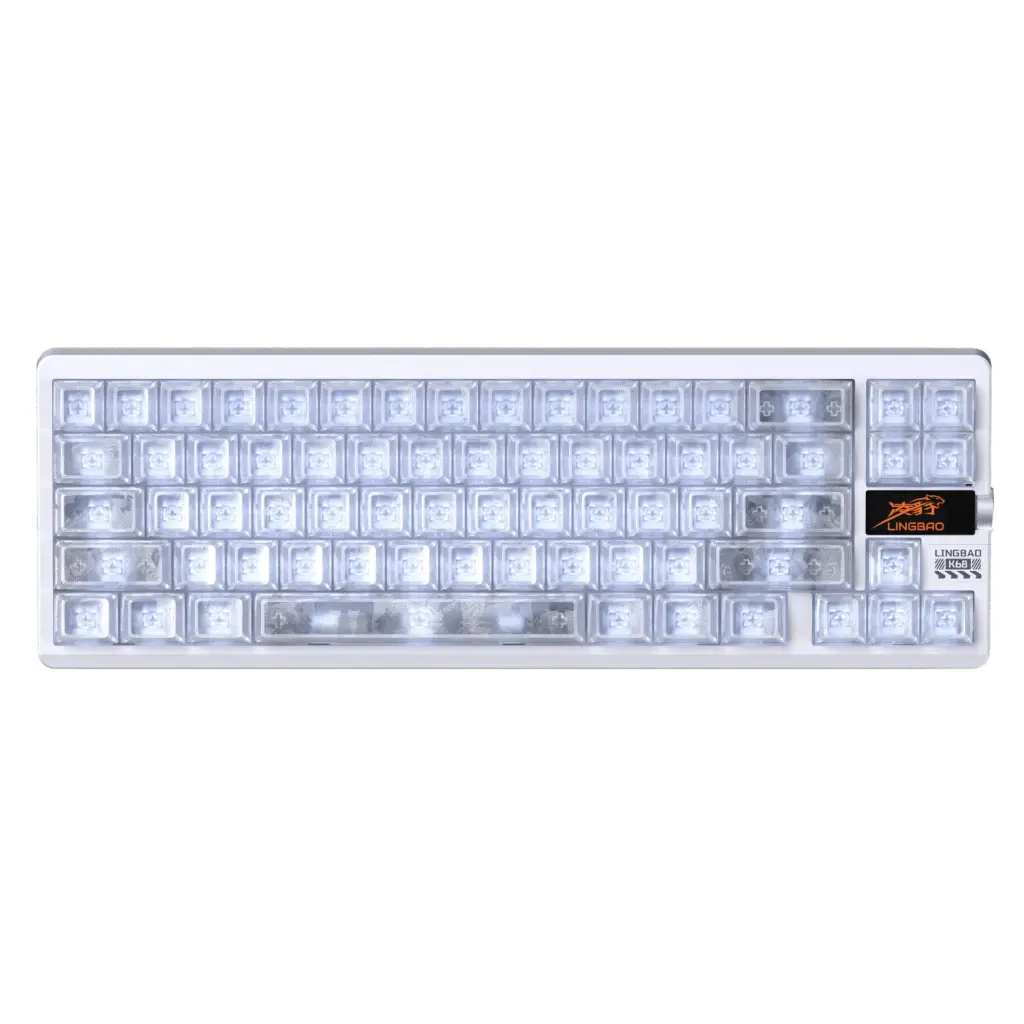

• White Transparent

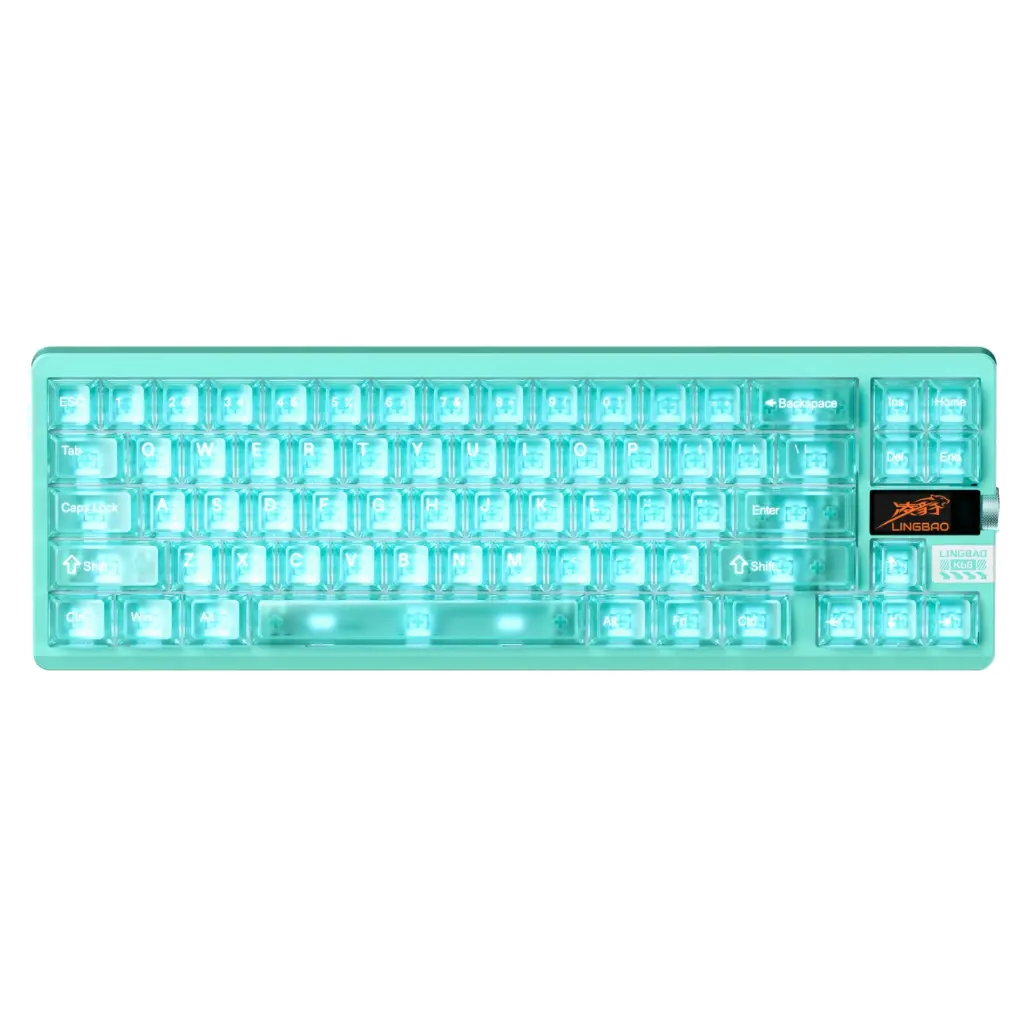

• Green Mist

The transparent PC keycaps feature different legend styles depending on the selected colour, allowing users to choose a look that suits their gaming setup.

What's in the Box?

• 1 × LINGBAO K68 Magnetic Gaming Keyboard

• 1 × Dust Cover

• 2 × Spare Magnetic Switches

• 1 × Keycap and Switch Puller

• 1 × Type-C to USB Adapter Cable

Why Buy from Blitz Gears?

• 1 Year Official Warranty

• Authentic gaming peripherals

• Competitive pricing

• Nationwide delivery across Bangladesh

• Reliable after-sales support

• Carefully packed for safe delivery

Get the LINGBAO K68 Magnetic Gaming Keyboard

Experience responsive magnetic switches, 0.01mm Rapid Trigger precision, 8000Hz polling, a customizable TFT display, and tri-mode connectivity in one compact 68-key keyboard.

With its 6000mAh battery, six-layer internal dampening, and customizable ARGB lighting, the LINGBAO K68 is built for gamers who want advanced input control without sacrificing desktop style.

Order the LINGBAO K68 from Blitz Gears and upgrade your gaming setup.
